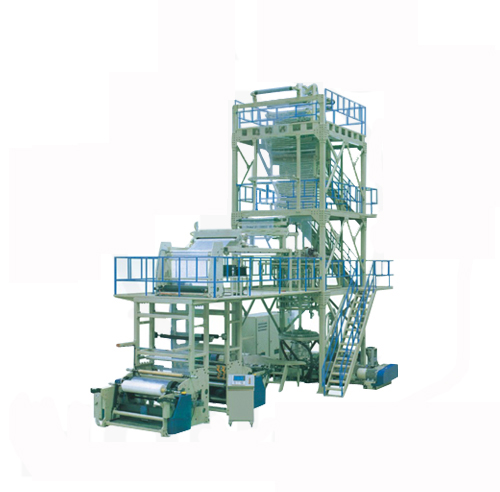

MSJ-GS Series Multi-layer Co-extrusion Packing Film Blowing Machine
MSJ-GS Series Multi-layer Co-extrusion Packing Film Blowing Machine Download Email Print this Page
Products Name :MSJ-GS Series Multi-layer Co-extrusion Packing Film Blowing Machine
Specifications

Haul-off unit is oscillating reverse by horizontal±180。.Its structure is reasonable, so it economizes lots of energy and it is easy to maintain. By means of the reversing haul-off unit, films can be produced without requiting rotating die head, so the structure of die head is simplified. Reversing haul-off unit eliminates many problems of ling channel for the rotating die head, difficult sealing for the melt, compound leakage being easy, unsymmetrical heating, difficult maintenance, macro film tolerance and so on Haul-off unit reduces the degree of difficulty for recipe of the multi-layer co-extruded product and production technical processing control, if the blowing film line is with IBC (Internal Bubble cooling system),it can produce film with the quality of more high-grade transparency and better all round performance. The produced film is very flat, reel is high-quality by the use of reversing haul-off units. The film can meet the demand for the high-speed printing.


Model

MSJ55-GS1300

MSJ60-GS1500

MSJ65-GS1700

MSJ70-GS2200

Maximum film size

1200

1400

1600



Thin film layer

3

3

3

3

film thickness

0.02-0.12

0.02-0.12

0.02-0.12

0.02-0.12

maximum output

120

150

180

240

Adapting raw material

MLLDPE、LLDPE、LDPE、EVA

Screw diameter

¢55×3

¢60×3

¢65×3

¢70×3

Screw length diameter ratio

28:1

28:1

28:1

28:1

Maximum screw speed

15-100

15-100

15-100

15-100

Main motor power

22×3

30×3

37×3

45×3

Host switch network

手动双工位快速换网

Manual twin-station changing screen quickly

Die structure

可带IBC膜泡风冷系统

With or without IBC(Internal Bubble Cooling system)

Wind ring structure

双风口

Dual tuyere

Rotary traction system

Film transition mode


水平

Horizontal

Rotation angle

±180度

±180℃

Traction and rolling speed

45

45

45

45

Total power

85

110

140

220

Outline dimension

10000×6000×9000

10000×600×9500

11000×7000×10000

13000×7000×12000

weight

15

20

25

30
