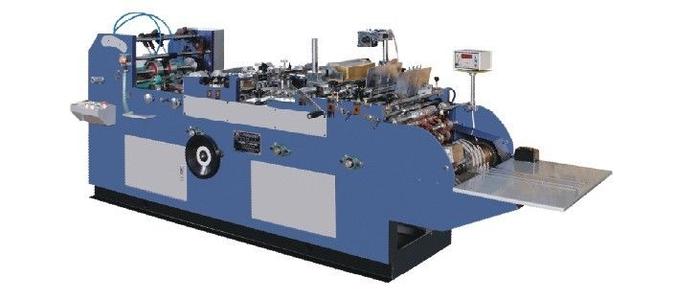

ZF-380 Automatic envelope paper bag gluing machine
ZF-380 Automatic envelope paper bag gluing machine Download Email Print this Page
Products Name :ZF-380 Automatic envelope paper bag gluing machine
Specifications

ZF-380 full-automatic envelope paper bag gluing machine is a new type of equipment which is improved by introducing advanced technology from abroad and integrating the shortcomings of similar products in China, this equipment is equipped with advanced automatic

four-sided creasing device to ensure high precision forming and stability when the machine is running at high speed, equipped with self-adjusting folding and conveying device to adjust accurately and quickly when changing varieties in the production process, the biggest

advantage of this equipment: debugging The biggest advantage of this equipment: convenient debugging, speed improvement, stable performance; this machine is the current domestic envelope paper bag production and processing equipment.


Model ZF-380
Applicable paper gram 70-180g/m2
Working speed 5000-15000pcs/h
Power of main motor 1.5kw
Air pump motor power 3kw
Processing envelope specifications Chinese style: 70x70-324x229mm
Western style: 70x70-230x160mm
Machine weight 1800kg
Machine size (LxWxH) 3950x1150x1200 mm
