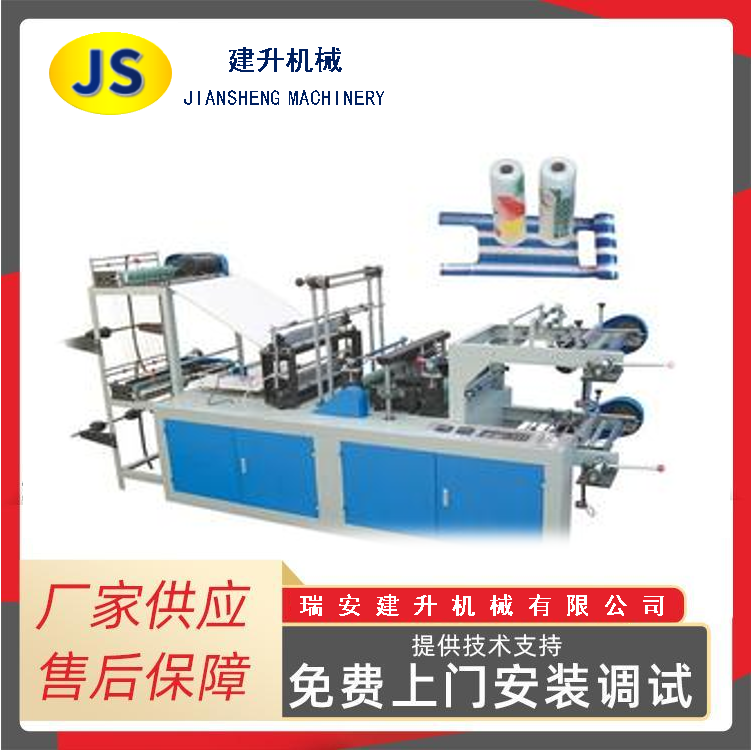

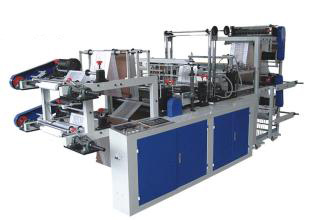

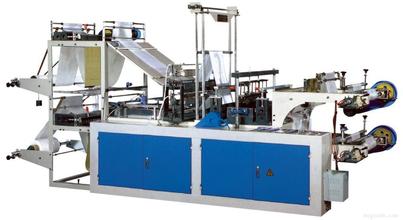

YT-350 type eight-fold continuous roll undershirt bag-making machine (S-type eight-fold continuous roll bag-making machine)
YT-350 type eight-fold continuous roll undershirt bag-making machine (S-type eight-fold continuous roll bag-making machine) Download Email Print this Page
Products Name :YT-350 type eight-fold continuous roll undershirt bag-making machine (S-type eight-fold continuous roll bag-making machine)
Specifications
Performance and application.

        This equipment is a fully automatic computerized continuous roll "S" type and eight-fold continuous

roll undershirt bag making machine, which is developed and produced by ourselves according to the requirements

 of foreign trade film packaging bag enterprises, integrating light, electricity, gas and instrument. It is mainly applicable

 to the bag-making machine of LDPE, HEPE and other hot-melt films. It has photoelectric control for automatic material

 release, photoelectric control for sealing of pneumatic components, photoelectric tracking of color code, automatic counting,

automatic change of rotation when the number is reached, foot pneumatic, neatly rewinding, and is the most ideal equipment

 for producing continuous roll "S" type and eight-fold continuous roll vest bags without stopping.



Model:YT-350
Bag making width:20-350mm
Bag-making length:20-1800mm
Bag-making speed:20-60pcs/min
Bag making thickness:0.024-0.380mm
Bag-making varieties: color printing bags, white bags, garbage bags.
Bag making form: continuous roll eight fold undershirt bag, continuous roll S type eight fold bag
Total power:4.8Kw
Overall size:4500×1300×1200mm
