The whole production line is developed after years of research on the basis of absorbing advanced foreign plastic machine technology.
For different shapes of materials, different feeding methods are adopted; for materials of different nature, corresponding screw structures are set. After one or more screen changes, it can better remove impurities.
The water ring cutting granulator makes the appearance of the particles get a bigger improvement, and the centrifugal dewatering machine and air-fed drying system make the produced particles free of moisture.
     The unit is suitable for PE, PVC and other waste film and PE, PVC, ABS, PP foam benzene and other crushed materials and PE, PP powder material selection, plastic manufacturers around the off-cuts, recycled old film, shed film nylon film and textile bags and other waste materials for processing raw materials, raw materials from a wide range of sources, and there is a guarantee that the product is in short supply. The pellets produced by this equipment can be widely used in the manufacture of various plastic products, such as household electrical parts, bags, binding materials and fertilizer, cement, flour bags and plastic toys, handicrafts, and medical utensils that can be sterilized, etc. The cost is reduced by more than 50%, which is very competitive in the market. Waste plastic recycling technology is very suitable for the promotion of demonstration and processing applications throughout China. It can not only turn waste into treasure, and has become a safe production of urban and rural collectives and individuals to get rich.

I. Equipment Introduction.
      The whole set of equipment from the host, auxiliary machine, cutting machine, water ring dehydrator strong fan, storage barrels, the set of complete sets of supporting, can be automatic continuous production, because the equipment special exhaust and drainage device, so the waste is no longer drying after washing, can be directly granulated, and granulation clean, no pollution and aging phenomenon, greatly reducing the production costs, improve production efficiency. The whole machine has a small size, high efficiency, good performance, low power consumption, high quality of finished products, wide adaptability of the significant features, can be adapted to meet a variety of processing requirements.

Its main technical parameters are as follows.

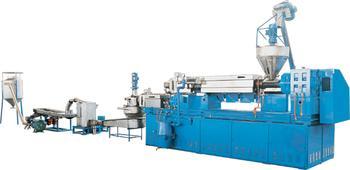

SJ-120 type plastic granulating machine
1, the host screw diameter 120 mm
2, the main motor power: 37 kilowatts
1, auxiliary machine screw diameter 110 mm
2, the main motor power: 15 kilowatts
3、Power of pelletizing machine: 1.5KW
4, screw speed: 45 rpm
5, motor speed: 1450 rpm
6、Pelletizing length: 2-6mm
7、Production efficiency: 100kg to 120kg
Volume: 1800kg, 7×4×0.5m
