Product Details

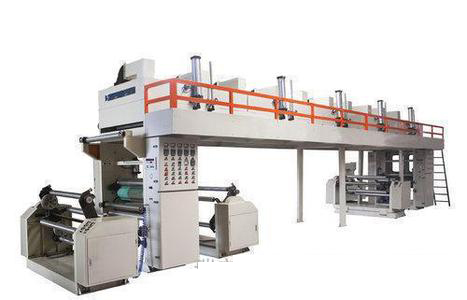

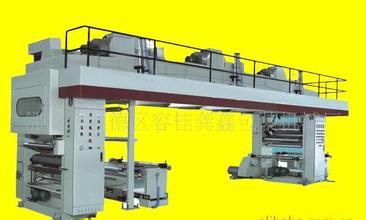

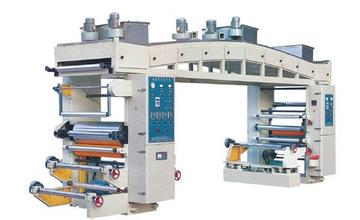

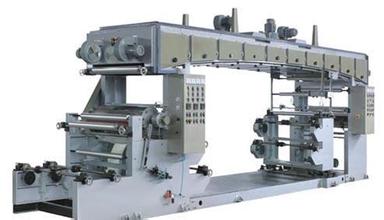

 I. Use
    The machine introduces foreign advanced coating machine technology combined with its own years of experience in the production of coating machine integrated, the machine adopts comma squeegee coating and anilox coating function, used for self-adhesive coating products.
Second, the main technical parameters
Model: TB-F650 type
Coating method: Comma squeegee coating and mesh coating
Coating width: 650mm
Unwinding diameter: φ600mm
Take-up diameter: φ600mm
Unwinding form: single station
Oven length: 10m
Oven temperature: 10-140℃
Coating speed: 10-80m/min (depending on the material)
Mechanical speed: 100m/min
Overall dimension: 14000×2350×3500mm
Machine weight: about 14T
Heating method: electric heating type
Total motor power of the whole machine: about 20KW
Performance and characteristics
1. The whole machine is controlled by 5 frequency conversion motors.
2. The form of discharge frame is electric flip double station, and it adopts magnetic powder automatic tension control.
3. Comma scraper coating method, the comma scraper roller clutch adjustment adopts pneumatic swing arm type, the swing arm is equipped with micro-adjustment device control, and the thickness of glue quantity is controlled by the stopper.
4、The anilox coating method, the coating scraper axis adopts heavy-duty double-axis mechanical independent swimming, the scraper adjustment method is manual with pneumatic type, the angle can be adjusted arbitrarily, the coating amount depends on the mesh line of the anilox roller, different coating amount can be changed to different mesh line of the anilox roller.
5、The oven is 10 meters divided into 4 sections of independent temperature control, heating using electric heating, hot air into the drying system, adjustable internal circulation suction and exhaust device, into and out of the strong wind, dry thoroughly.
6. The guide wheel in the oven adopts active synchronization with the host, and the transmission adopts synchronous belt pulley transmission type to avoid material stretching and deformation, and the side door type oven and wearing film operation platform make it easy for the operation workers to work.
7. Coating roller - traction steel roller middle tension synchronization using floating swing arm type control
8、Automatic meter and speed control device
9、Adopt the EPC edge aligner for the neatness of material winding.
10. The key type air expansion shaft is used for the take-up and take-down, which is convenient for the operation of loading and unloading materials.
11、High-precision up-pressure traction device, steel roller cooling adopts water circulation type, through the cooling roller to make the film more flat, more scraping, more to achieve the cooling effect.
12. The form of receiving frame is electric flip double station, and the rewinding adopts frequency conversion motor and vector frequency converter control.
IV. Requirements
A. Special customized machine according to different requirements of customers (limited width range is 300-2000mm)
B, the form of receiving and releasing frame are: manual lifting type single station, hydraulic lifting type single station, electric flip type double station, electric zipper climbing type double station, electric flip wheel type double station, etc. for customers to choose
C. Oven heating methods are: electric heating, heat-conducting oil furnace heating, steam heating, etc. for customers to choose
D. Coating methods are: anilox roller coating, double-roller coating, three-roller coating, five-roller coating, comma scraper coating, air knife coating, etc. for customers to choose
E. The working speed is proportional to the material of coating, coating thickness, oven length and drying temperature, etc.
V. Process flow
Substrate release roll - coating unit - drying unit - traction unit - winder
