use:

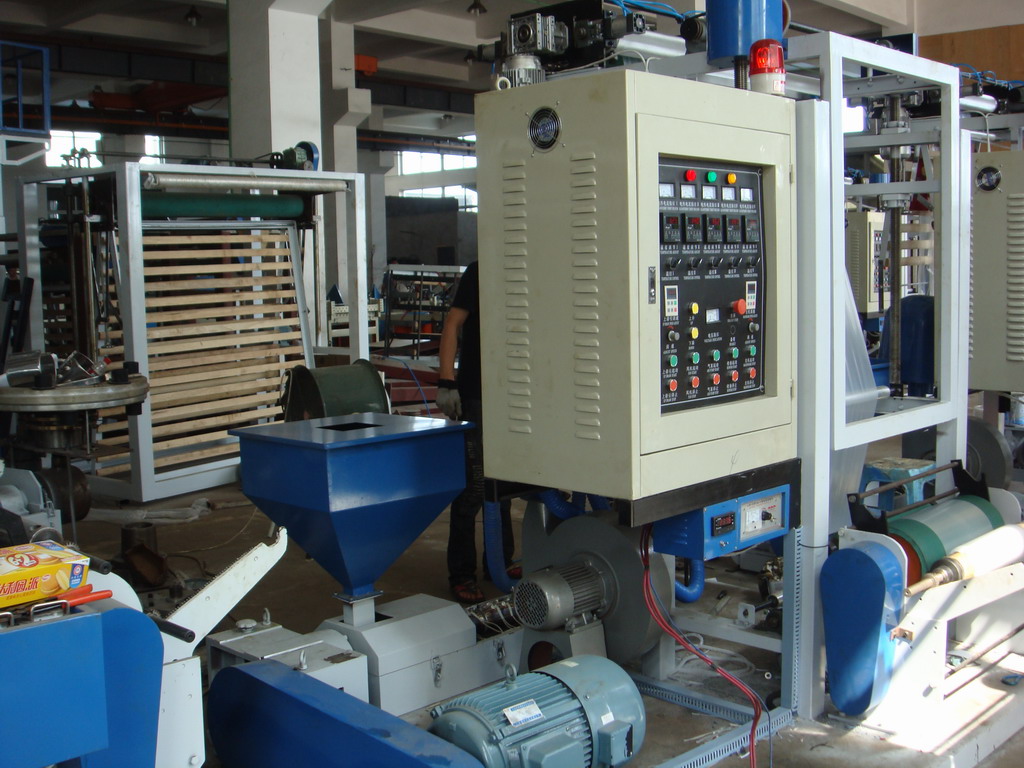

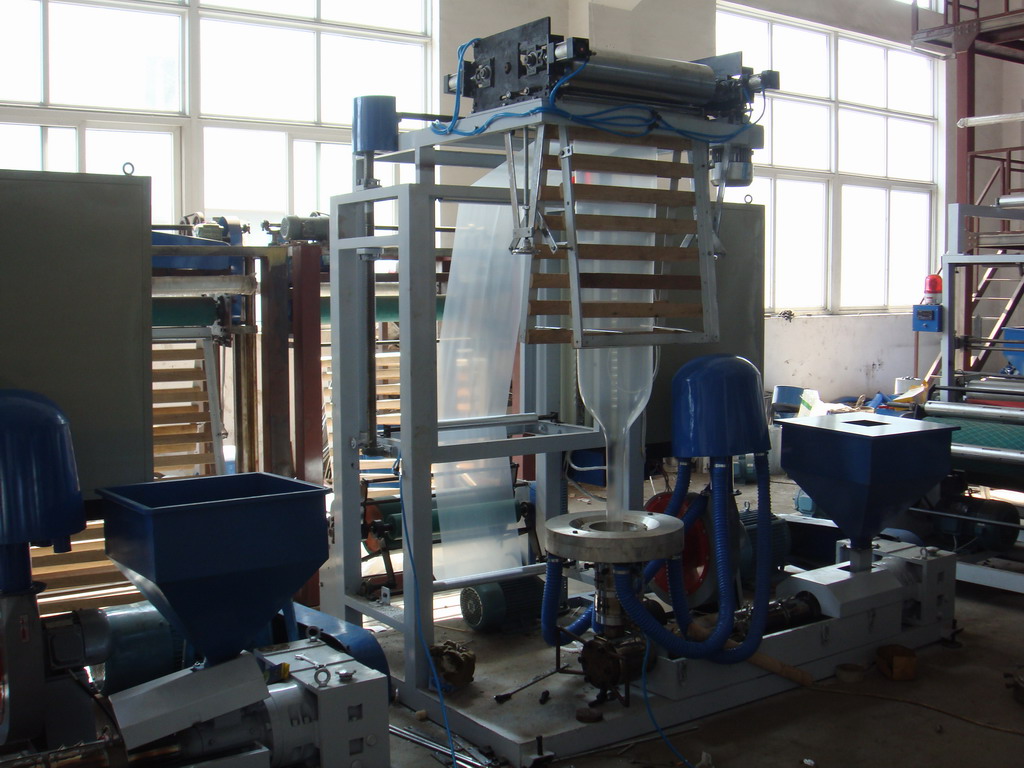

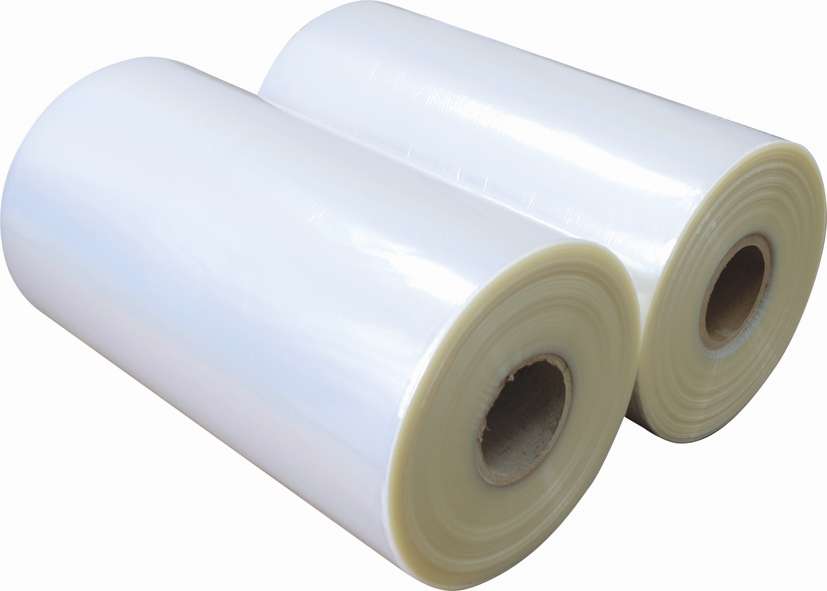

T his machine set is used for blowing Low-density polyethylene (LDPE) and high- density polyethyene (HDPE) plastic film to make various vest bags and flat-rim bags which have been widely used for packing in the food industry, garment industry and textile industry, etc.
Characteristics :
Both the cylinder and the screw of the extruder are made of high quality alloy steel through nitration and precision finishing with the best hardness and corrosion resistance.,Scientifically designed, this machine set has two heads for one extruder with such advantages as increasing production capacity, saving energy, labour and workshop area, etc.
Model
D50
D55
Screw diameter (mm)
φ50
φ55
Film diameter (mm)
100-600
200-800
Thin film thickness (mm)
0.01-0.10
0.01-0.10
Maximum extrusion volume (kg/h)
35
50
Ratio of length to diameter
26:1
26:1
Host power (KW)
7.5-11
11-15
Traction motor power (KW)
1.1
1.1
Heating power (KW)
11
13
Outline dimension (mm)
3800×1900×3000
5500×2100×3500
Machine weight (T)
1.5T
2T
