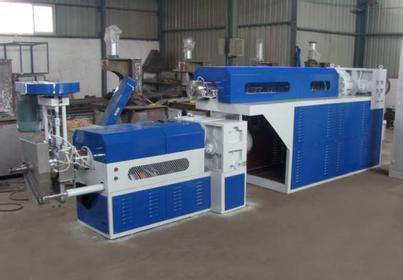

SJ-A90, 100, 110, 120 air-cooled hot cutting recycled plastic pelletizing machine
SJ-A90, 100, 110, 120 air-cooled hot cutting recycled plastic pelletizing machine Download Email Print this Page
Products Name :SJ-A90, 100, 110, 120 air-cooled hot cutting recycled plastic pelletizing machine
Specifications
1. Features: This machine is made of HDPE, LDPE waste film as raw material by extrusion air-cooled heat cutting into granules, good quality, no air holes, no moisture, the machine is equipped with forced feeder, fast screen changer, automatic temperature control instrument.
2. Main technical parameters
Machine type SJ-90 SJ-100 SJ-110 SJ-120
Screw diameter φ90 φ100 φ110 φ120
Screw length to diameter ratio L/D 20:1 -22:1 L/D 20:1 -22:1 L/D 20:1 -22:1 L/D 20:1 -22:1
Screw speed 10-100r/min 10-100r/min 10-100r/min 10-100r/min
Main motor power 22kw 30kw 37kw 45kw
Output 68kg/h 95kg/h 120kg/h 135kg/h
Weight of the whole machine 2600kg 2800kg 3000kg 3200kg
Dimension(L×W×H) 4000×1500×1800 4000×1500×1800 4000×1500×1800 4600×1500×1800
