Advantages of this machine.

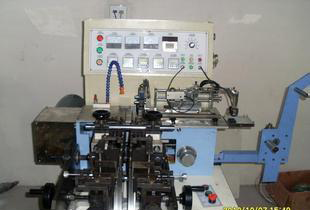

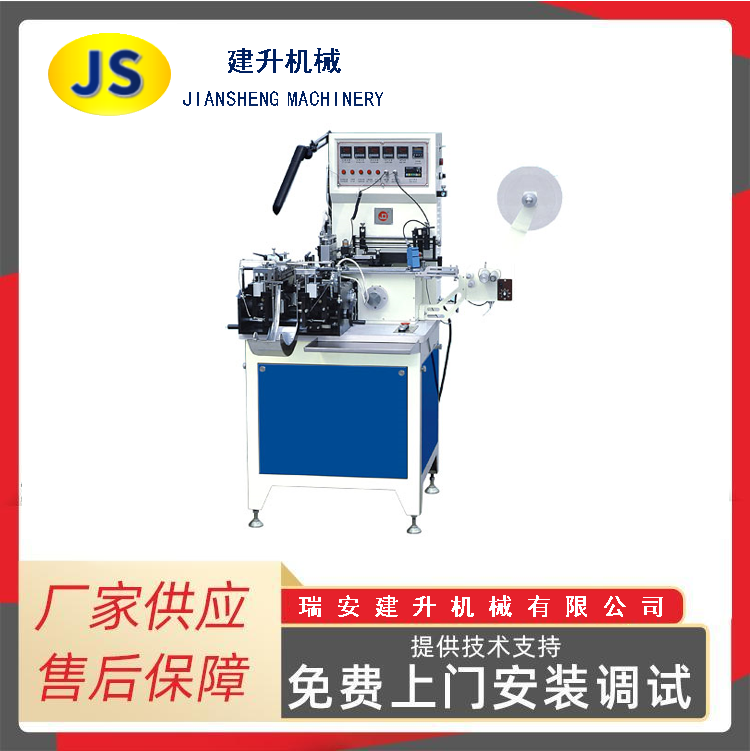

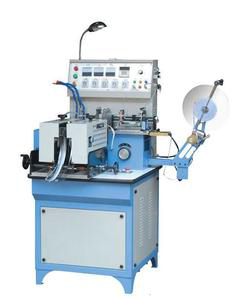

1. RZ2817 has cut and fold, cut and fold multifunctional machine, is a kind of excellent performance, high efficiency cut and fold machine.
2. holds a unique pull-back system cutting and folding machine more accurate, this machine debugging and workers operating without pointing available manually to quickly adjust any length.
Main technical parameters
Can cut tape material: webbing, ribbon, woven edge tape, tape
Cutting and folding types: two sides fold, long and short fold, fold, envelope fold, net cut, etc., bandwidth 10mm-70mm
Two-sided fold: the shortest 25mm, the longest 140mm, the narrowest 10mm, the widest 70mm
Folding: shortest 25mm longest 800mm narrowest 10mm widest 70mm
Envelope folding: shortest 25mm longest 140mm narrowest 10mm widest 70mm
Folding speed: single cut 200 / min
Power supply voltage:AC:200V-240V 15A/50-60HZ
Machine power:3KW
Overall machine weight: 300KG
Overall dimension(LXWXH):1200X1380X1580 mm
