Pearl cotton triangle bag making machine
Pearl cotton triangle bag making machine Download Email Print this Page

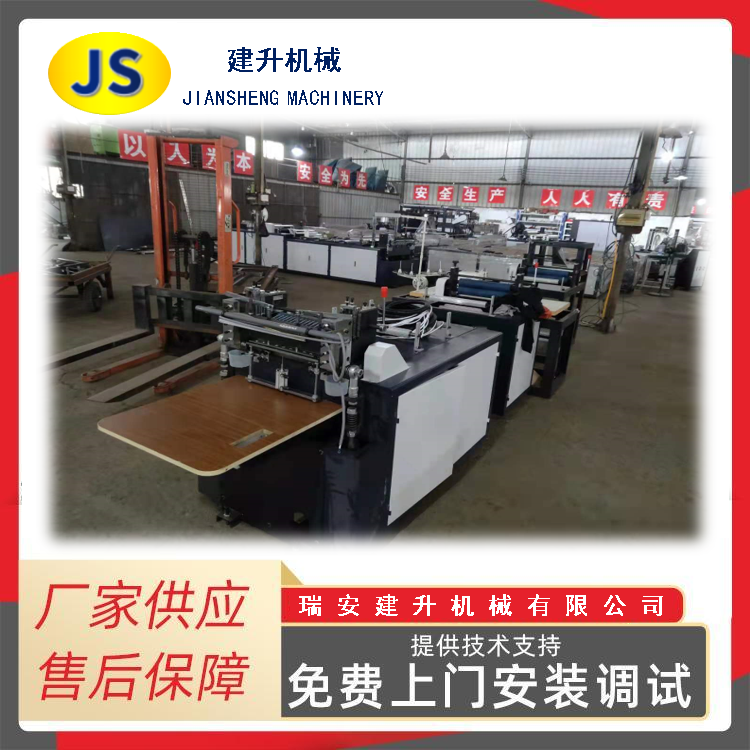

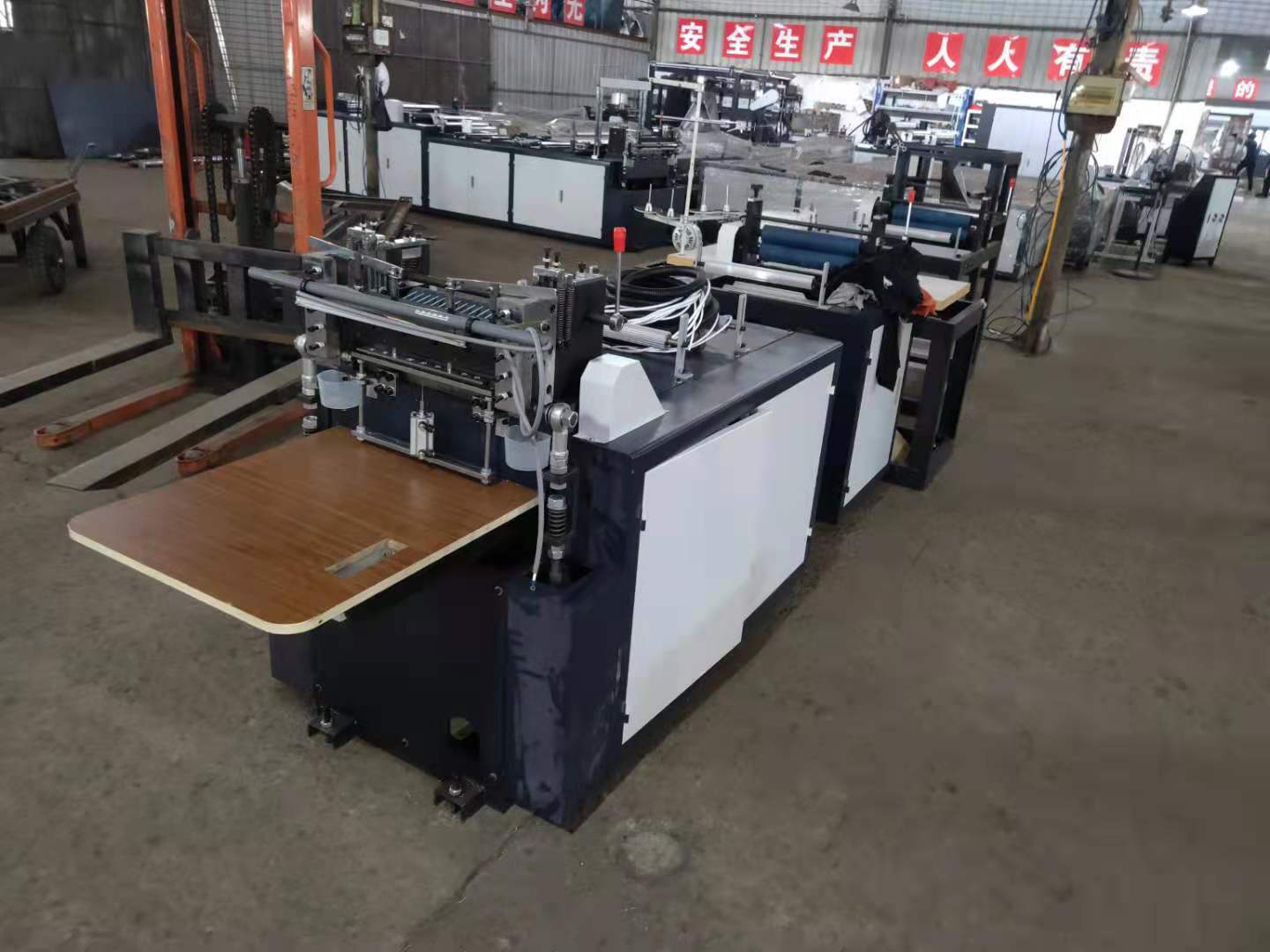

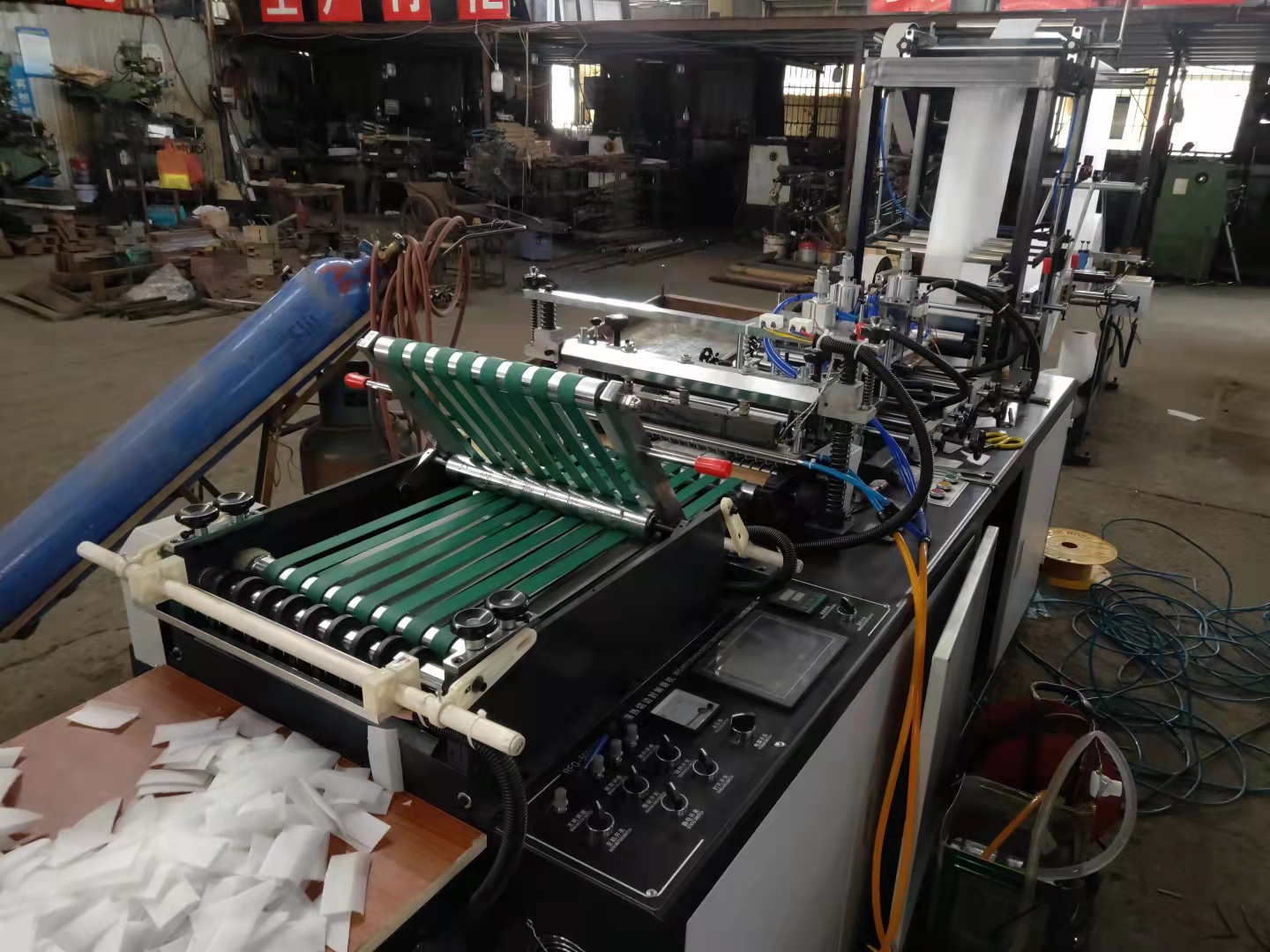

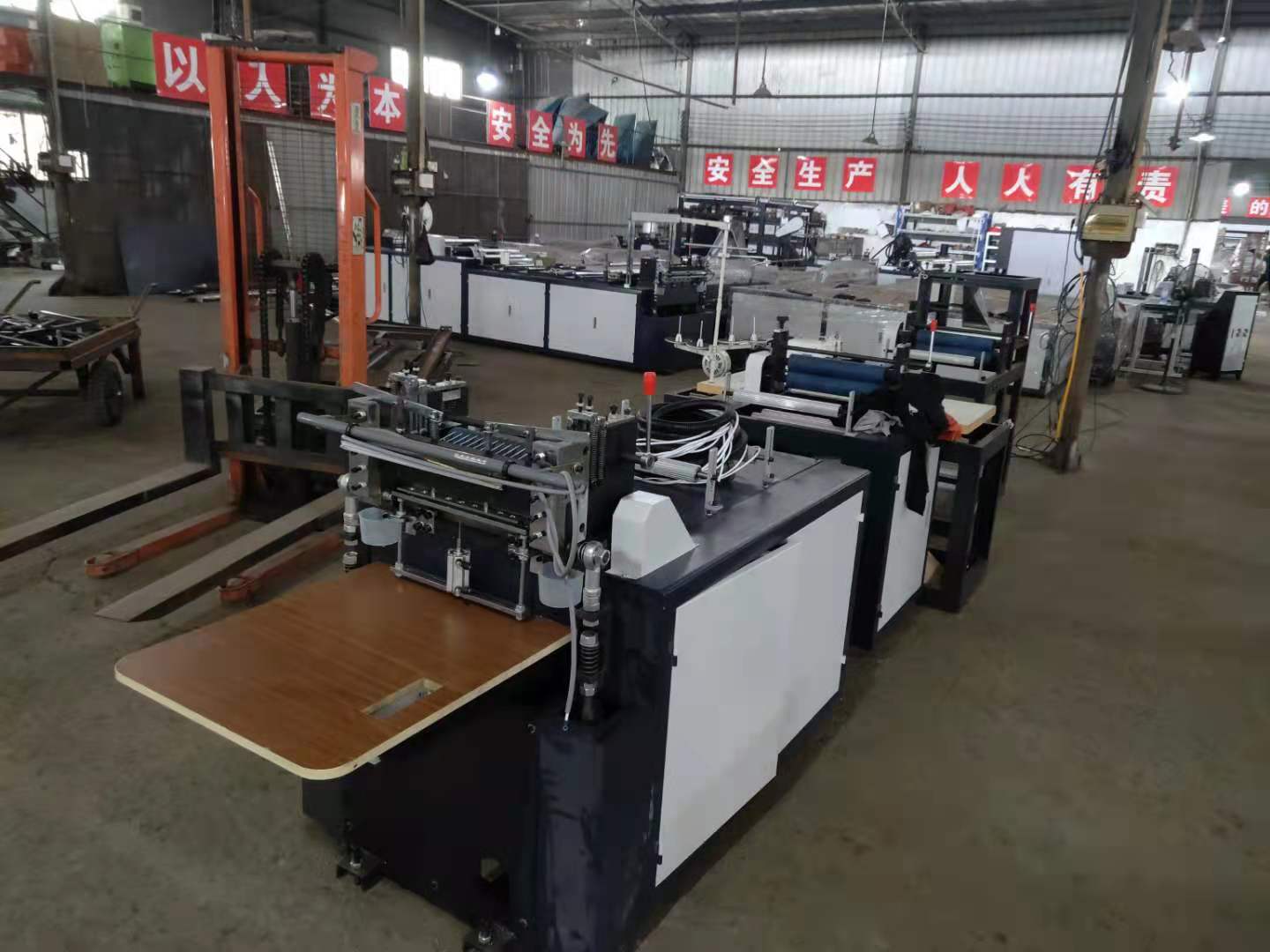

Products Name :Pearl cotton triangle bag making machine
Specifications
Brief introduction

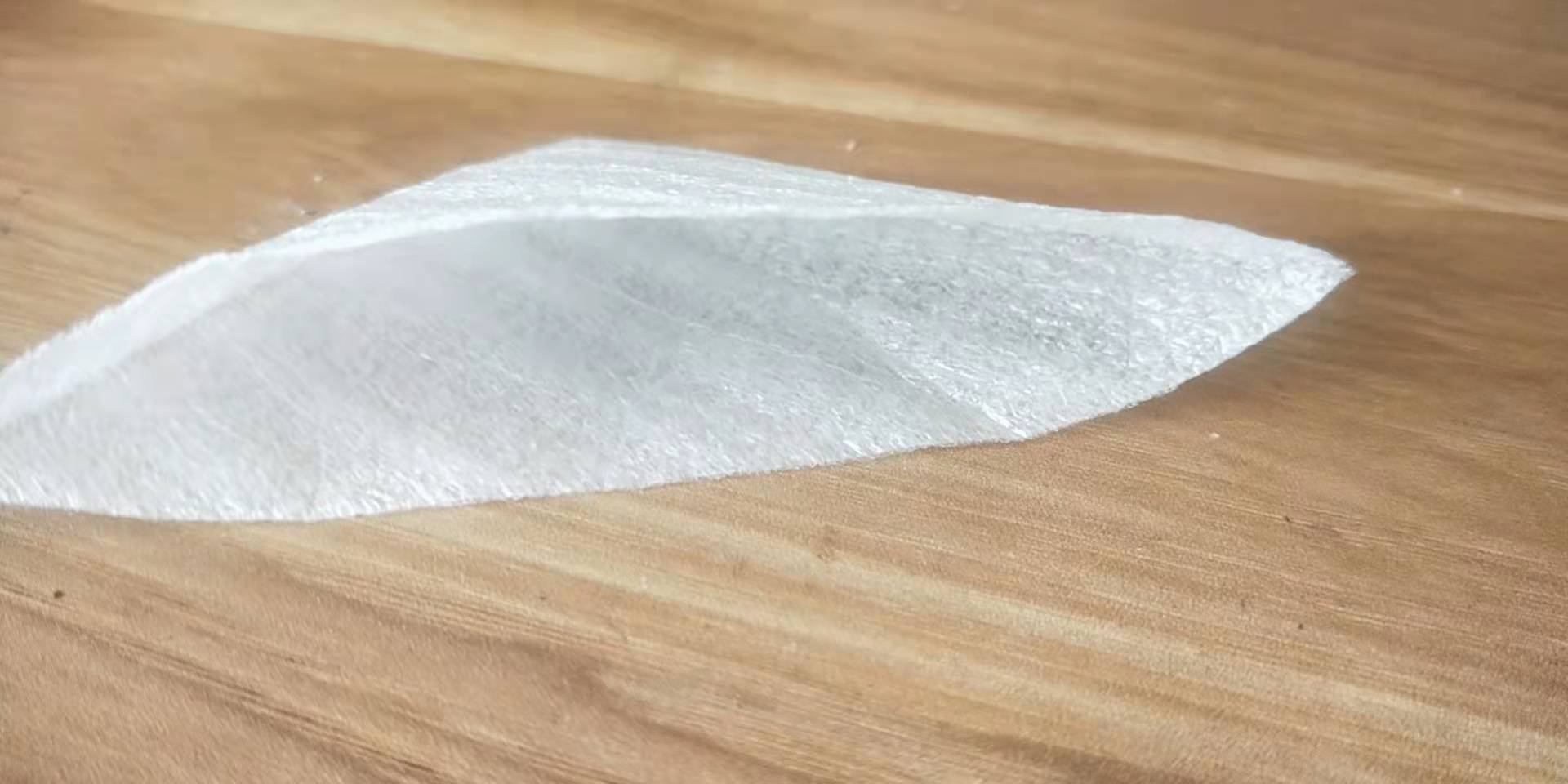

The machine is suitable for pearl cotton, can process a variety of different specifications, triangular pearl

cotton bags, can be used for glass factory set glass four corners with. The machine integrates

electromechanics, using LCD touch screen operation.

Equipped with step-by-step length setting, photoelectric tracking, computerized automatic positioning,

computerized automatic edge correction, accurate, stable, automatic counting, you can set the counting

James warning and other industrial control devices, so that its production of finished products seal line

firmly, cut line beautiful. High-speed efficiency, bag-making equipment.

Process flow: roll material folding hemming heat sealing folding inserting hemming positioning punching

 heat sealing cutting collecting finished products.


Model: JSL-400
Substrate width: 100-250mm
Production speed: 80-100pcs/minX2
Unwinding width:100-250mm
Bag-making length:70-150mm
Bag-making thickness (mm): 1-1.5mm
Power supply: 220
Total power: 5KW
Overall dimension (L*W*H): 3200X1000X1800mm
