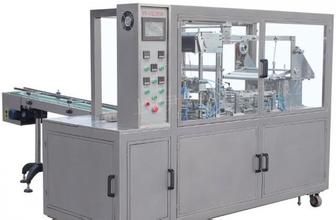

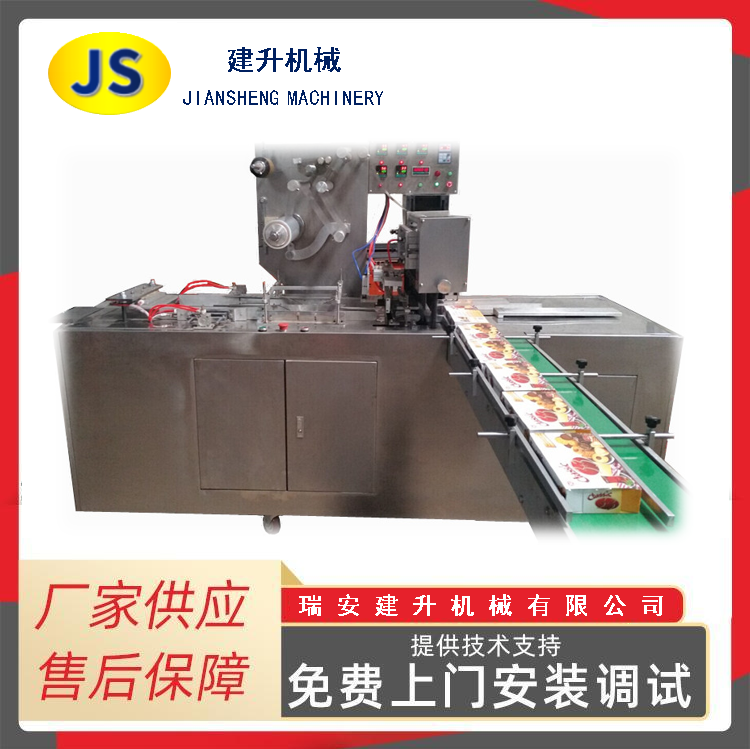

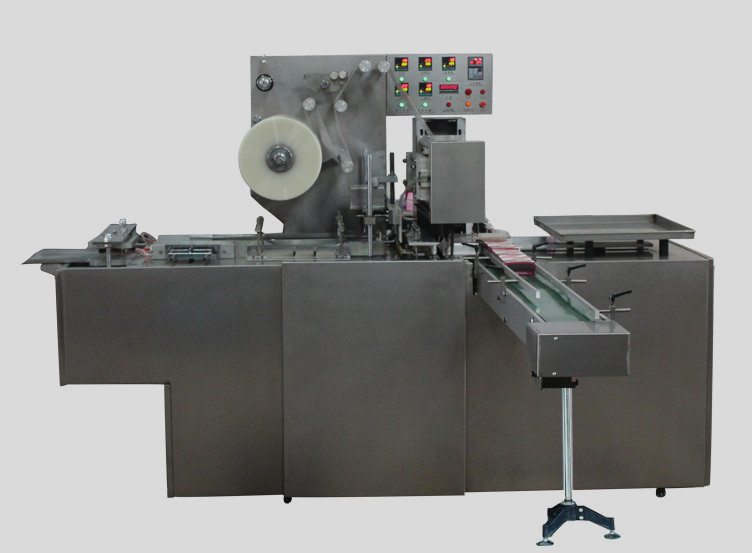

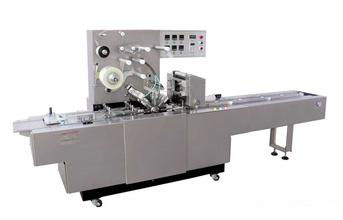

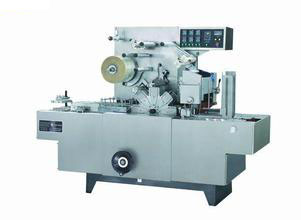

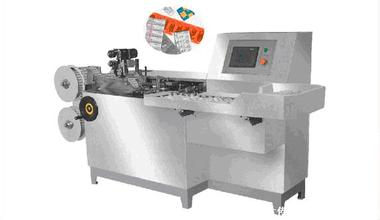

Model PT-380 Transparent Film 3D Packaging Machine
Model PT-380 Transparent Film 3D Packaging Machine Download Email Print this Page
Products Name :Model PT-380 Transparent Film 3D Packaging Machine
Specifications
Brief introduction.

This machine is an improved equipment developed by our factory by absorbing the advantages of domestic three-dimensional packaging

machine and some problems encountered in the use of customers. It is the ideal choice for customers who are packing many kinds of products.

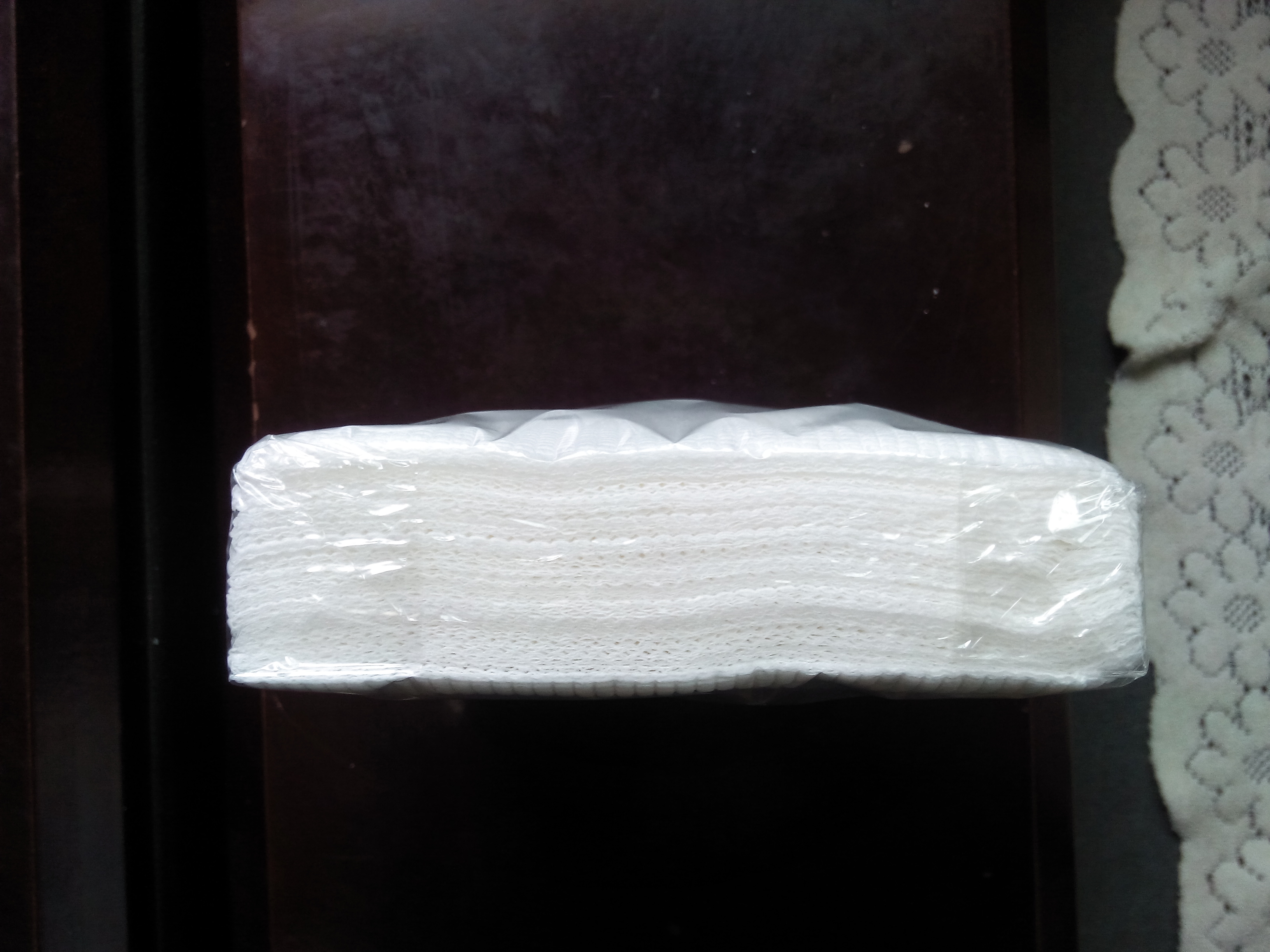

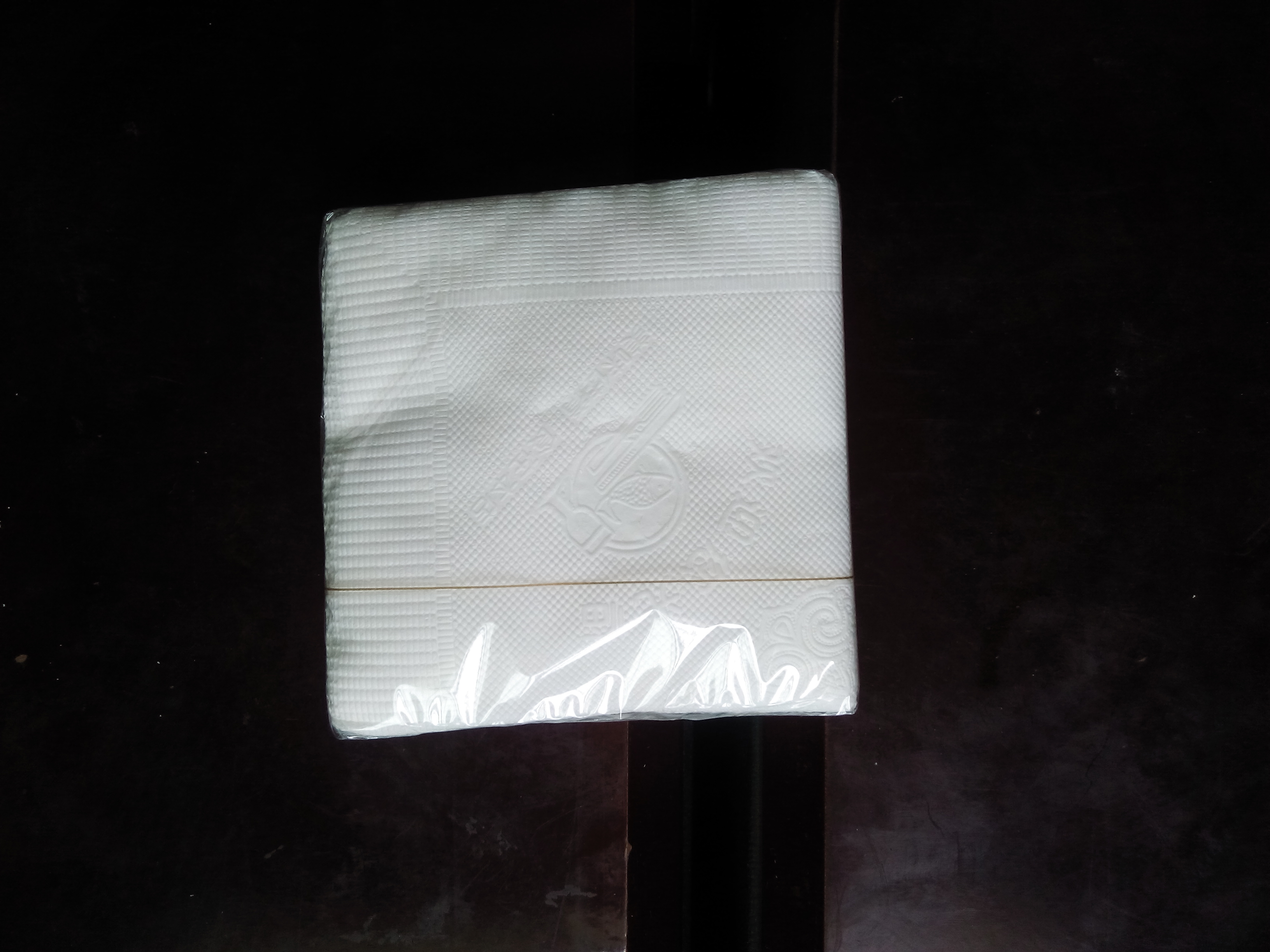

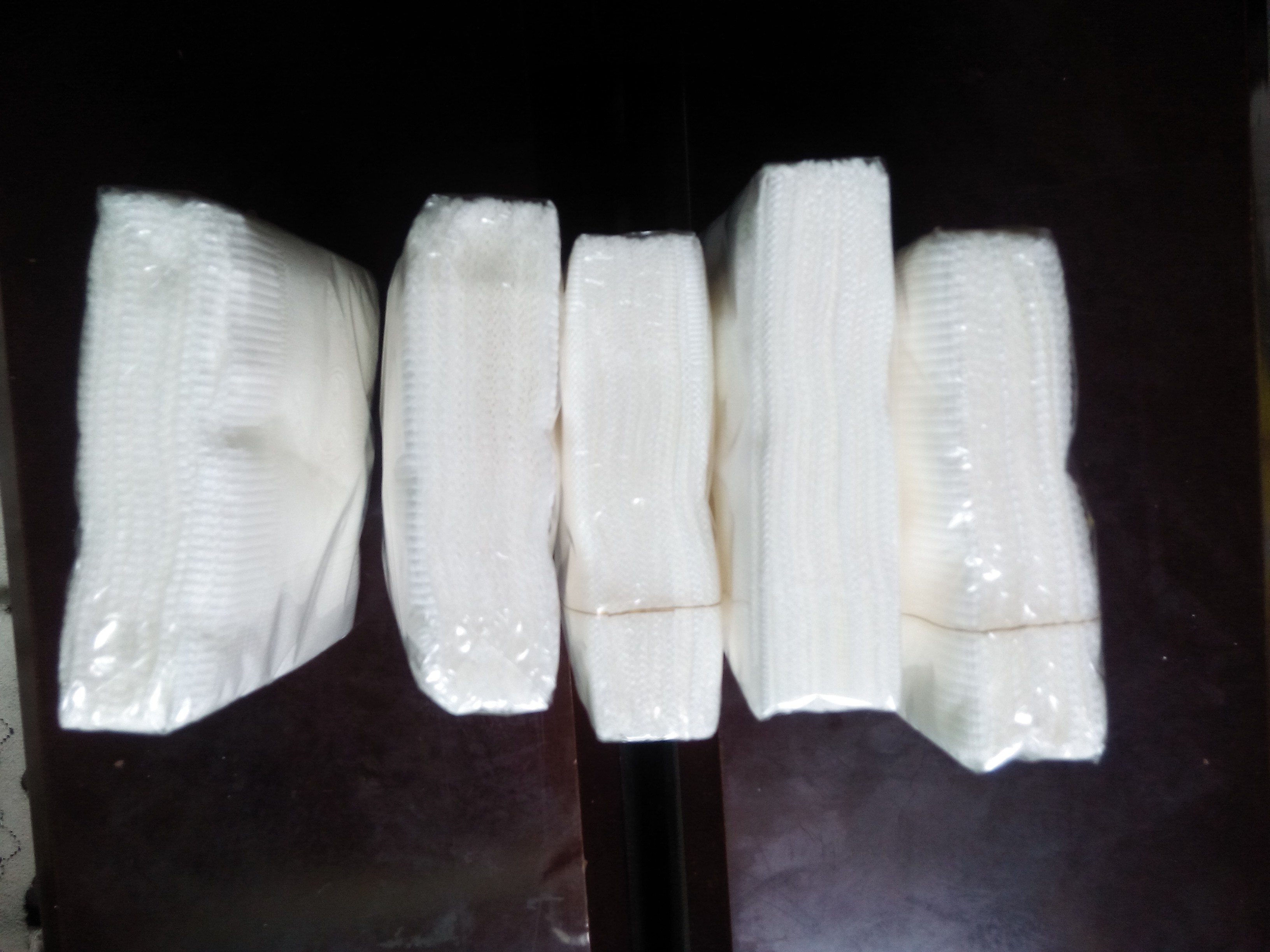

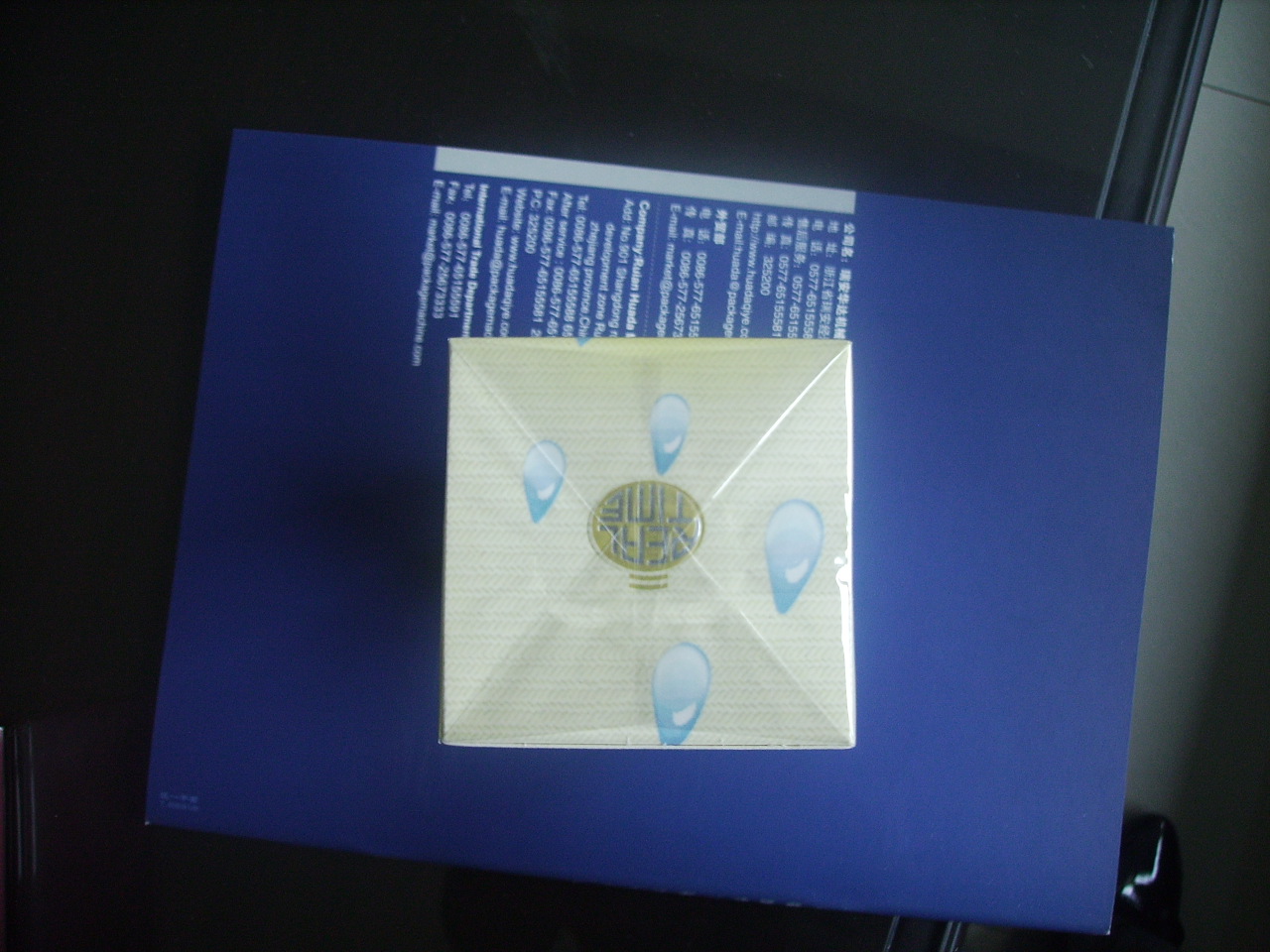

This machine is suitable for wrapping various large or multi-boxed square items such as drugs, health care products, nutritional supplements,

food, daily cosmetics, stationery supplies, VCD tapes, poker, cigarettes, etc. It is an ideal box-type three-dimensional packaging equipment.



Performance structure and characteristics.
Packaging speed adjustable, no need to replace the mold to achieve the model packaging range of different specifications of the product packaging , heat sealing temperature adjustable
Functions (two anti and three enhancements).
Two anti: anti-counterfeiting / moisture-proof
Three enhancements: improve the added value of the product / improve the grade of the product / improve the quality of product decoration


Main technical parameters.
Machine type: PT-380 type
Production efficiency: 20-50 packs / min
Packaging size range: (L) 60-280mm (W) 40-140mm (H) 30-80mm
Power source: 220V 50-60Hz
Total power: 3.5Kw
Overall dimension: 2300mm×780mm×1540mm(L×W×H)
Conveyor belt size: 1600mm × 180mm × 100mm (L × W × H)
Weight: 800Kg
