1. Low speed and full load startup; stable running by tension control when increasing and decreasing speed , noise is decreased

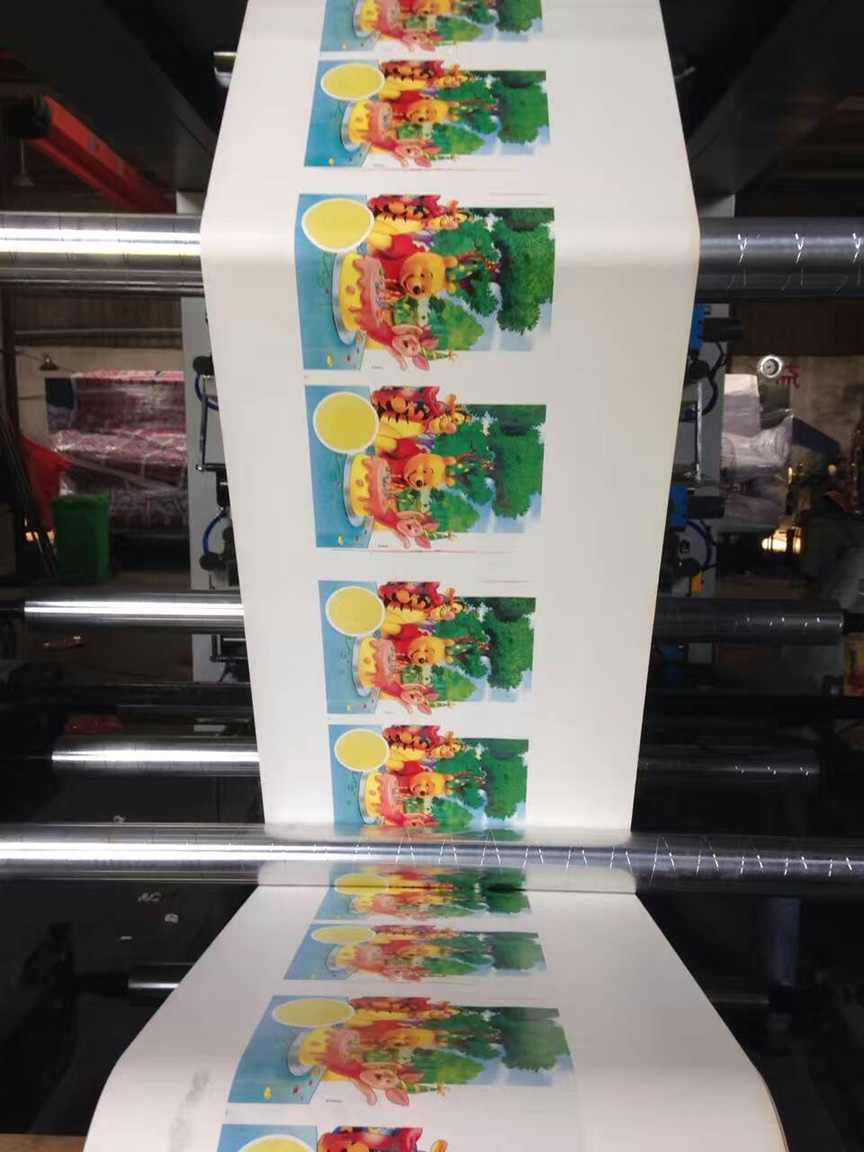

 2. High dots presentation rate under high speed; clear and vivid stratification of screen printing; strong stereo effect and accurate registering.

 3. Aluminum roller adopts the Japan semi-sealing small bearing; flinty oxidation, static and dynamic balancing treatments are conducted; low resistance and small flop.

 4. The special made modulus angular gears adopted; accurate printing size and full printing specifications (5mm is a spec)

 5. With the air exhaust, blowing and heating settings; the heating system adopts the central thermostatic control system and group management, also with the cold air forming devices.

 6. Printing rolls should keep moving while machine halted

 7. Material holder use air shaft

 8. Autotension control

 9. Unwind with auto deviation correction system (EPC)

10. EDGE position control

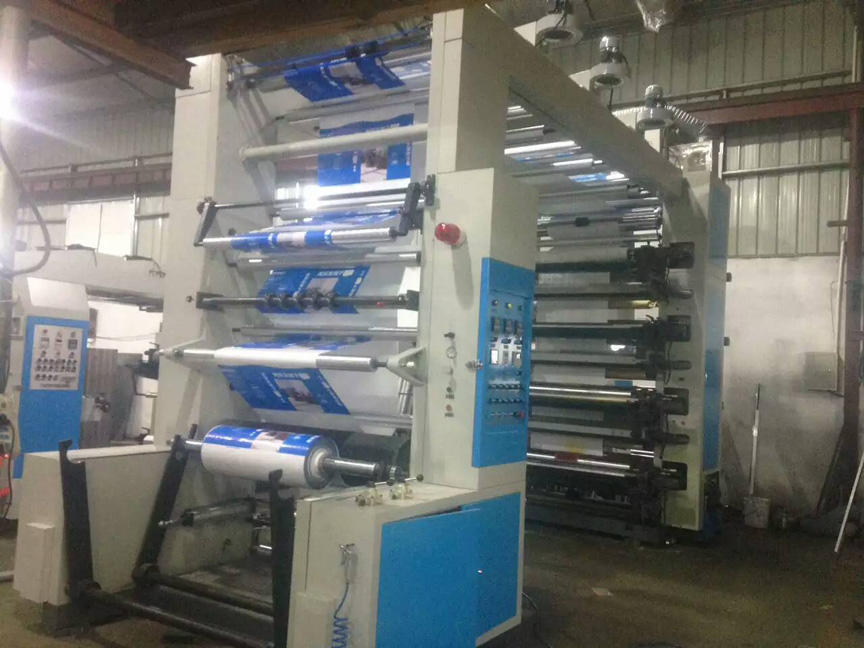

11. Reversible printing 6 color press for6+0, 1+5, 2+4, 3+3.

12. 1 sets of printing cylinder, sizes:   15 inches.



Printing  width	600mm - 1600mm
Printing material	PVC:35~70μm,OPP:20~70μm,BOPP:18~60μm,PE:35~100μm,
	NY:20~50μm,PET:12~60μm,CPP:20~60μm,p   Paper:20~150g/m2
Printing color	at your own choice+ 2 special color
Printing length	7.5"～40"(190mm~1000mm)/7.5"～50"(190mm～1270mm)
Printing plate lifting system	Pneumatic press control
Machanical speed	100m/min
Printing speed	10～80m/min
Register precision	Longitude:±0.15mm    Transverse:±0.15mm
Rewinder/Unwinder DIA	Φ1200mm
