● Use

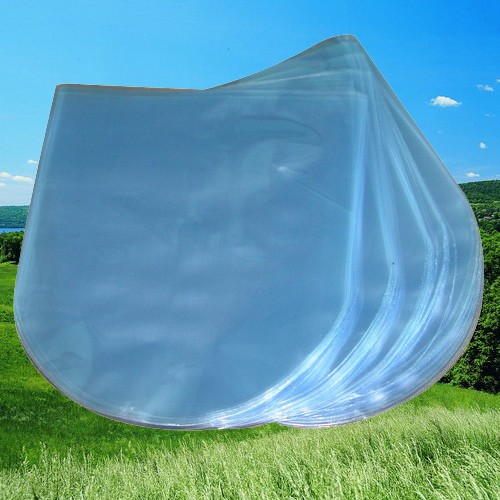

The machine is suitable for making high and low pressure undershirt bags, arc bags, duck bags, food bags, flat bags, medical disposable bags (garment bags, shoe bags) sanitary napkin bags, etc. (The production of arc bags can be done by adding the front device)
Performance and characteristics
1、 The whole machine adopts microcomputer computer control, stepping motor dragging material. (Servo motor control system is optional).
2、 Arbitrary fixed length, step length photoelectric tracking, accurate, smooth, automatic shutdown of lost mark, feeding with photoelectric control.
3、 Automatic counting can set the counting alarm.
4、 Automatic constant temperature makes the bag mouth seal firmly and flat.

Main technical parameters

Model	500	600
Max.Bag-making Width	450	550
Cutting Width	About 1000mm	About 1000mm
Production Capacity	30-80 pcs	30-80 psc
Total Power	4.5kw	4.5kw
Weight of Machine	800kg	900kg
Overall Dimensions	3300×1050×1500mm	3300×1150×1500mm
