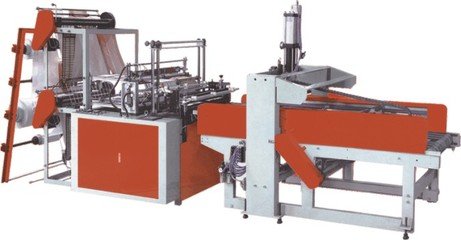

FQCT-HC-600 type computer-controlled automatic punching double layer bag-making machine

FQCT-HC-600 type computer-controlled automatic punching double layer bag-making machine Download Email Print this Page

Products Name :FQCT-HC-600 type computer-controlled automatic punching double layer bag-making machine

Bottom

Return

Specifications

Use.

This machine is suitable for high-density polyethylene, low-density polyethylene plastic film heat sealing

bottom bag making, using high-speed stepping motor double layer feeding, air and hydraulic punching "U"

shaped mouth once formed. Easy to operate, high yield rate, can greatly improve production efficiency.

Model FQCT-HC-600 FQCT-HC-700
Sealing width 150-260mm 180-310mm
Cutting length 300-650mm 300-650mm
Seal cutting thickness 0.015-0.04mm 0.015-0.04
Bag-making speed (50-110)*4pcs/min
(50-110)*4pcs/min
Air pressure 5kG/cm2 5kG/cm2
Motor power 1.1kw 1.1kw
Weight of the whole machine 1100kg 1150kg
Overall dimension 4800×1180×1700mm 4800×1280×1700mm
