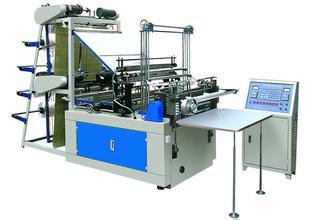

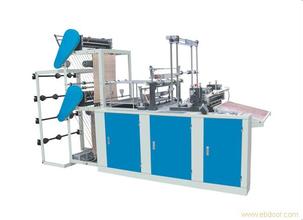

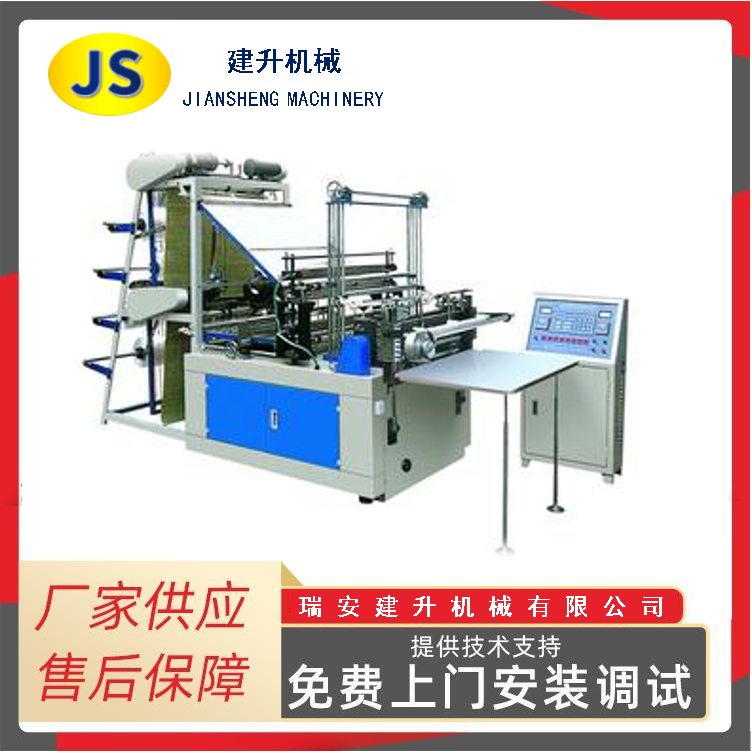

FQCT-600 (700) type two-layer high-speed bag-making machine
FQCT-600 (700) type two-layer high-speed bag-making machine Download Email Print this Page
Products Name :FQCT-600 (700) type two-layer high-speed bag-making machine
Specifications
Uses.

1、This machine is suitable for sealing and cutting of high-density polyethylene (HDPE) and low-density

polyethylene (LDPE) plastic films, and is the best equipment for producing plastic undershirt bags and flat

bags. Various plastic films with or without color printing can be sealed and cut into bags continuously and

automatically. 2、The machine adopts microcomputer control, stepper motor stepless speed adjustment,

high stop, stable feeding, accurate positioning, the bag processed by the machine is flat, brace, beautiful

shape.


Model FQCT-600 FQCT-700
Width of sealing and cutting 10-550mm 10-650mm
Sealing and cutting length 100-1200mm 100-1500mm
Seal cutting thickness 0.01-0.10mm 0.01-0.10mm
Bag making speed 30-100pcs/min for printed bags
White bag 60-320pcs/min Printed bag 30-100pcs/min
White bag 60-320pcs/min
Length error ±lmm ±l.5mm
Motor power 1.1kw 1.5kw
Weight of the whole machine 600kg 700kg
Overall dimension 2800×1180×1600mm 2900×1280×1650mm
