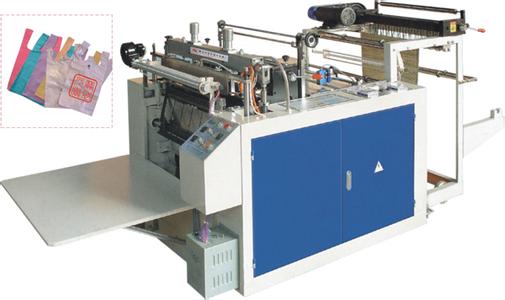

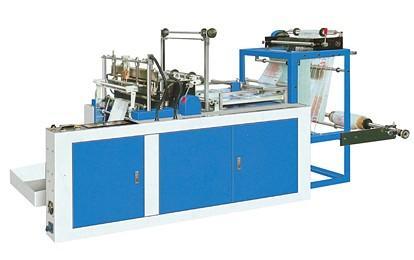

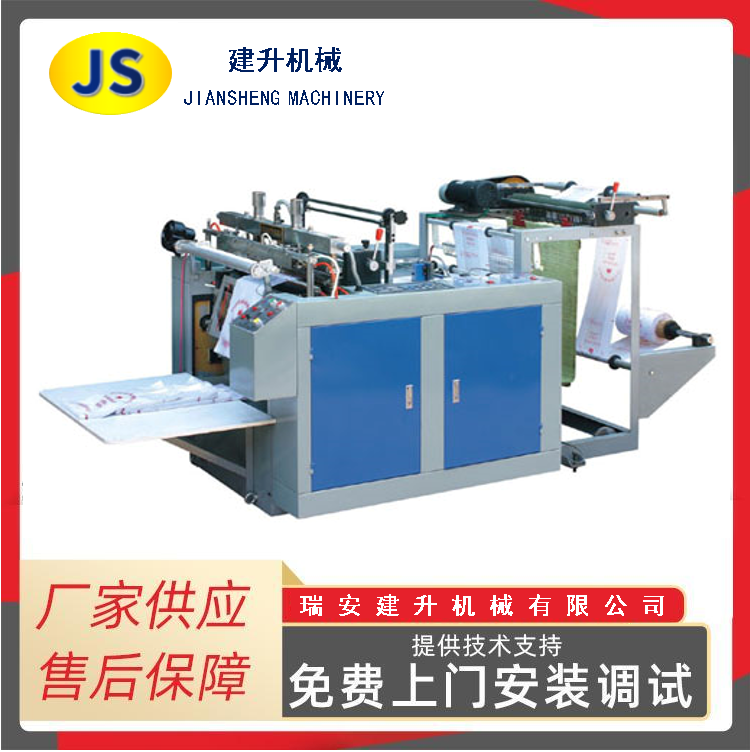

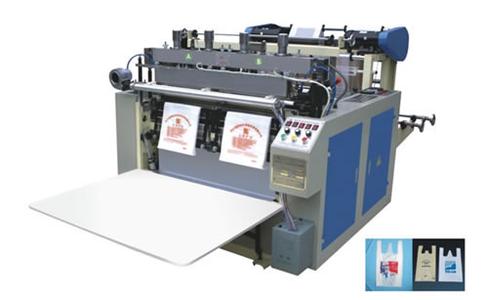

FQCH-600(700) type series computerized heat sealing and cutting bag-making machine
FQCH-600(700) type series computerized heat sealing and cutting bag-making machine Download Email Print this Page
Products Name :FQCH-600(700) type series computerized heat sealing and cutting bag-making machine
Specifications
Use
   This machine is suitable for the heat sealing and cutting of LDPF, HDPF and other plastic films, and is the ideal equipment for the professional production of natural color and colored horse clip bags.
Performance and characteristics
    1、Newly designed sealing and cutting device, easy to adjust the pressure of sealing and cutting knife, the overall flip up to 180 degrees, easy to clean and replace the adhesive tape.
    2、Imported reflective photoelectric switch monitoring, stable and reliable feeding, automatic shutdown for lost label.

    3、The whole machine adopts microcomputer computer control, stepping motor dragging material (optional servo motor control system), the sealing and cutting size is accurate.


    4、Automatic counting and settable counting alarm and whole book output system.
    5、Imported frequency conversion motor makes the equipment smooth and power-saving, centralized from the oil system.


Model type
FQCH-600
FQCH-700
Sealing and cutting Width
<450mm
<600mm
Sealing and cutting Length
<800mm
<1000mm
Sealing and cutting Thickness
0.01-0.05mm
0.01-0.05mm
Bag-Making Speed
30-120pcs/min
30-120pcs/min
Machine Power
3.5kw
4.5kw
power supply
220V 50HZ
220V 50HZ
Machine weight
≈700kg
≈750kg
Overall Dimensions (L×W×H)
2900×1150×1250mm
2900×1250×1250mm
