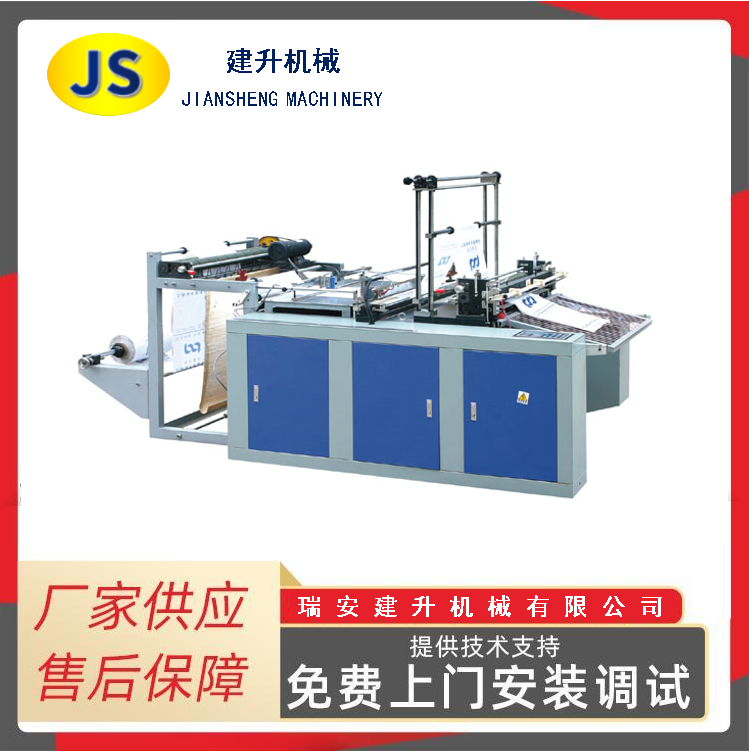

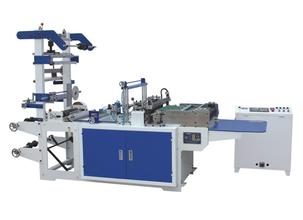

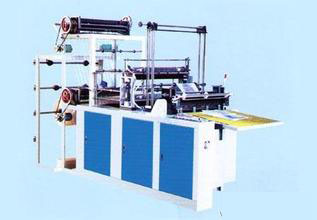

FQC-600 type computerized high-speed automatic bag-making machine
FQC-600 type computerized high-speed automatic bag-making machine Download Email Print this Page
Products Name :FQC-600 type computerized high-speed automatic bag-making machine
Specifications
Uses.

1、This machine is suitable for sealing and cutting of high density polyethylene (HDPE) and low density

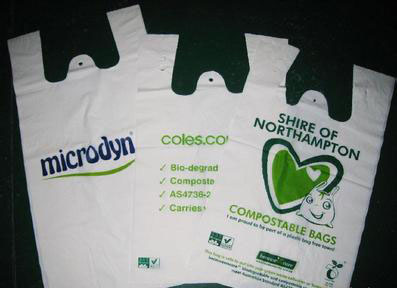

 polyethylene (LDPE) plastic films, and is the best equipment for producing plastic vest bags and flat bags.

 It is the best equipment for the production of plastic vest bags and flat bags. All kinds of plastic films with

 or without color printing can be sealed and cut into bags continuously and automatically. The machine adopts

 microcomputer control, stepper motor stepless speed adjustment, high level stop, stable feeding and accurate

 positioning, the bags processed by this machine are flat, brace and beautiful in shape.



Model: FQC-600, FQC-700, FQC-800
Sealing width 10-550mm, 10-650mm, 10-750mm
Cutting length 100-1200mm, 100-1500mm, 100-1600mm
Sealing thickness 0.01-0.10mm, 0.01-0.10mm, 0.01-0.10mm
Bag-making speed 30-120pcs/min, 30-120pcs/min, 30-120pcs/min
Length error ±lmm、±lmm、±lmm
Motor power 1.1kw, 1.5kw, 1.5kw
Overall machine weight 600kg, 700kg, 750kg
Overall dimension 2800×1180×1600mm, 2800×1280×1650mm, 2800×1380×1700mm
