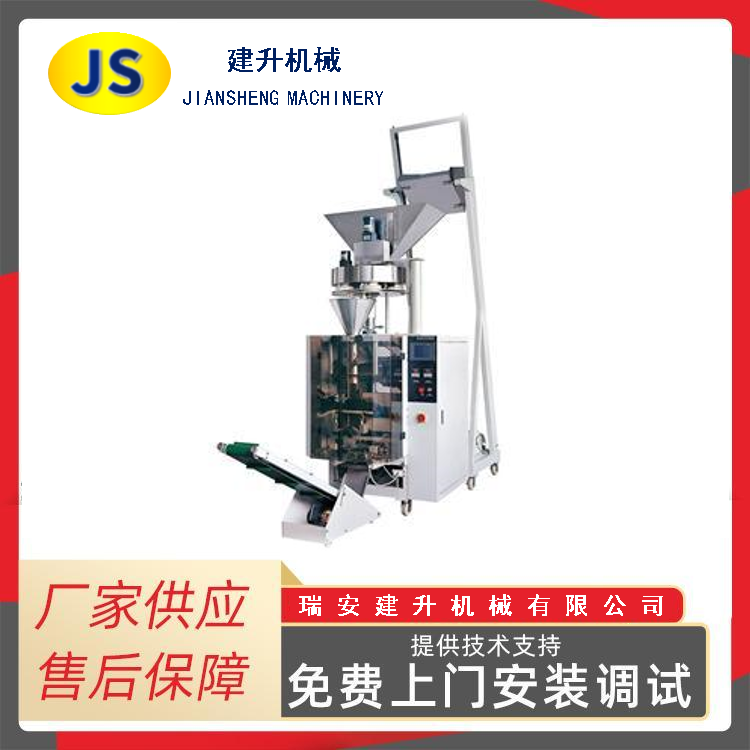

DXD-400B chain bucket type multifunctional automatic packaging machine
DXD-400B chain bucket type multifunctional automatic packaging machine Download Email Print this Page
Products Name :DXD-400B chain bucket type multifunctional automatic packaging machine
Specifications
Scope of application
Suitable for puffed food, shrimp strips, candy, chocolate, cookies, melon seeds, frozen food, daily necessities, small hardware, pharmaceutical materials and other materials packaging

Product advantages.

Adopting original single servo or double servo motor control, it is more intelligent, higher packaging precision, wider adjustable range, more accurate control, lower scrap rate and

better stability compared with other domestic and foreign similar inverter motor or inverter controlled products. Due to the adoption of the world's leading fully open box structure,

the transmission structure is clear at a glance and maintenance is more convenient.


Main performance and structural features
Reasonable design and simple structure.
Single-chip computer and stepper motor control, easy and accurate bag length setting.
Simple and fast speed regulation.
Optional devices: continuous bag control device, inflatable device (gas source is self-provided).

Main technical parameters
Packing speed: 15-60bags/min
Bag making size (L): 60-250mm (W) 60-180mm
Measuring range: 50-850ml
Packaging film width: 140-400mm
Packaging material: OPP/CPP PET/PE and other composite materials
Film thickness: 0.04-0.08mm
Film roll diameter: Max. 320mm
Power supply power: AC220V 50Hz 2.5kw
Machine size: (L)1100×(W)820×(H)2150mm
Machine weight: 400kg
