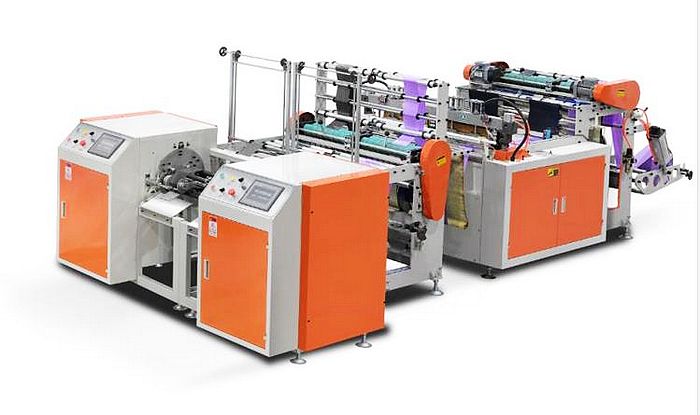

Double-row corewinding bag making machine
Double-row corewinding bag making machine Download Email Print this Page
Products Name :Double-row corewinding bag making machine
Specifications

Uses:

It is suitable for dots-severing & cutting all kinds of fusible natural film and color film. It is an ideal equipment for flat-rim bag, trash bag etc.

Characteristic:

It adopts photoelectrical cell control winding and unwinding, has a high precision in printing. If lost sign, machine will stop automatically. 2.It adopts double working position for winding, unwinding and sealing.

3.It adopts microcomputer to control, servo motor to pull material. Producing length and pieces can be set up freely.



Main Technical Variables:

Model

CY-400*2

Max.Width of Bag-making(mm)

350mm*2

Max. Length of Bag-making(mm)

1000mm

Speed of Bag-making (pcs/min)

50--250pcs*2/min

Single-face Film Thickness(mm)

0.015-0.035

Air Compressor(not included)(HP)

6

Outline dimension
(L×W×H) mm

5000×1450×1550

Machine weight(Kg)

1100
