Features:

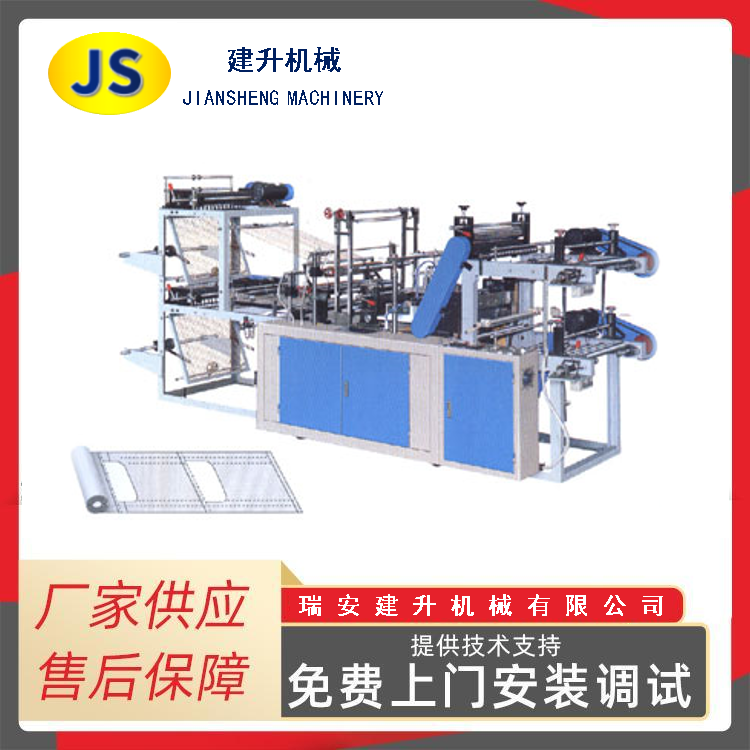

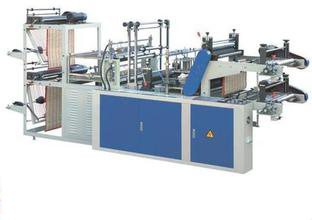

This machine can produce printing, undershirt bag, undershirt bag with HDPE, LDPE tube film as raw material.

It adopts PLC control, double servo (stepping) motors to fix the length, LCD touch screen real-time display, from

feeding, bottom sealing, cutting, punching, automatic conveying completed at one time, high degree of automation,

good economic efficiency.


Main technical parameters :
Model:DFHQ -400X2、DFHQ -450X2
Max. bag making width: 300mm*2, 400mm*2
Max. bag making length: 600mm, 600mm
Bag-making thickness: 0.015-0.035mm, 0.015-0.035mm
Bag-making speed: 120-200pcs/min, 120-200pcs/min
Air pressure: 5kg/cm2, 5kg/cm2
Total power: 7kw, 9kw
Machine weight: 1450kg, 1650kg
Overall Dimension: 5500*1800*1600mm(L*W*H), 5800*2000*1800mm(L*W*H)
