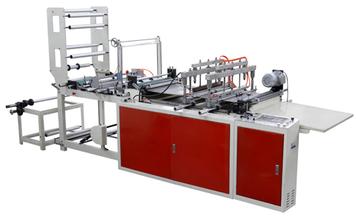

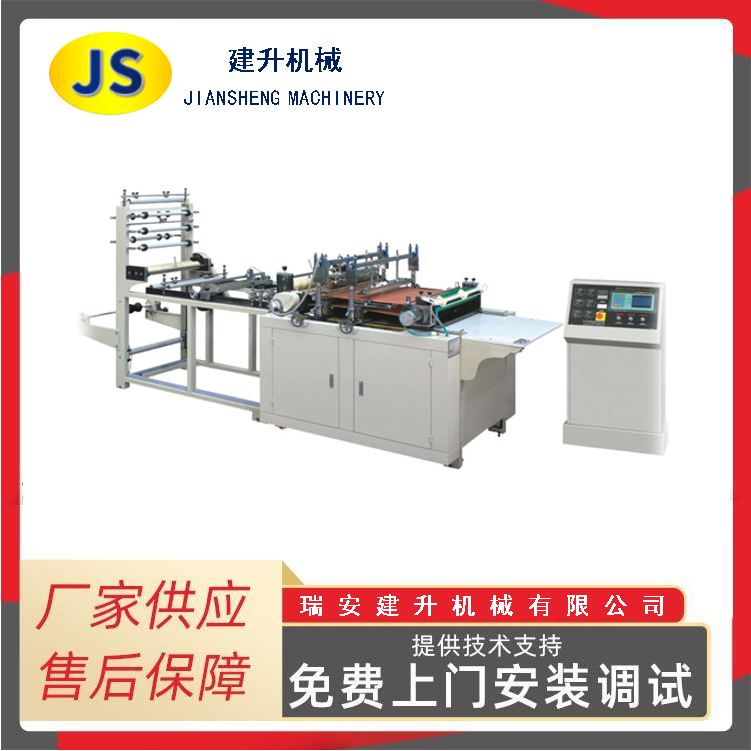

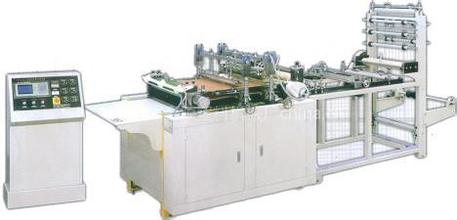

Chain-locked bag making machine
Chain-locked bag making machine Download Email Print this Page
Products Name :Chain-locked bag making machine
Specifications
Performance and characteristics.

This machine is an advanced bag-making machine. It adopts photoelectric tracking, computer control,

stepping motor (or optional servo) feeding, frequency conversion speed control, automatic temperature

 control, with the advantages of simple operation, solid and beautiful sealing edge. This machine is specially

 used for sealing and cutting high pressure PE chain bag (aka: self-sealing bag, dense bag, bone bag).


Main technical parameters:
Model :ZIP-500、ZIP-600
Material: LDPE, LDPE
Output : 50~150(pcs/min), 5120~570mm0~130(pcs/min)
Bag-making width: 100~470mm, 120~570mm
Bag-making length: 120~300mm, 150~400mm
