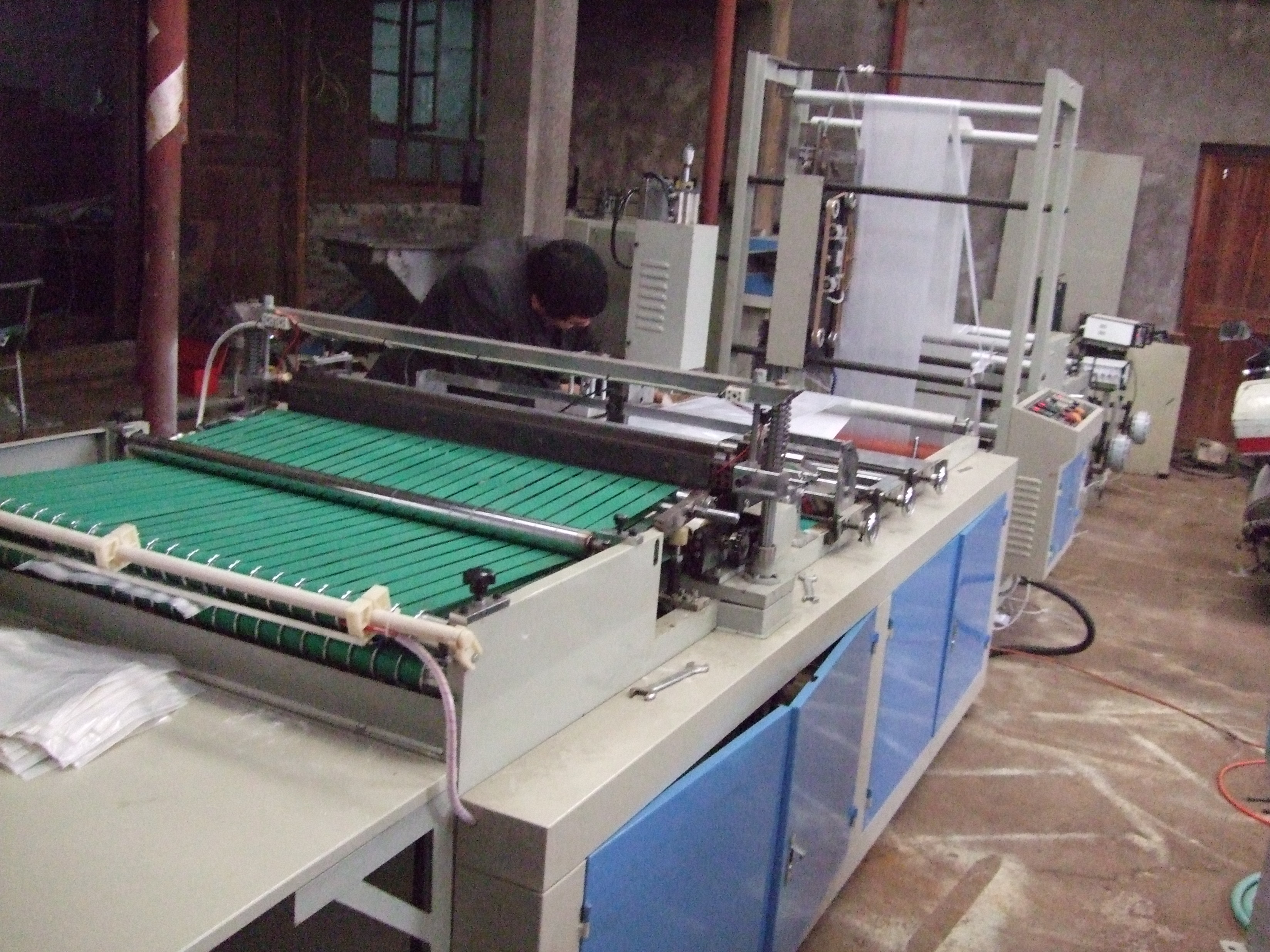

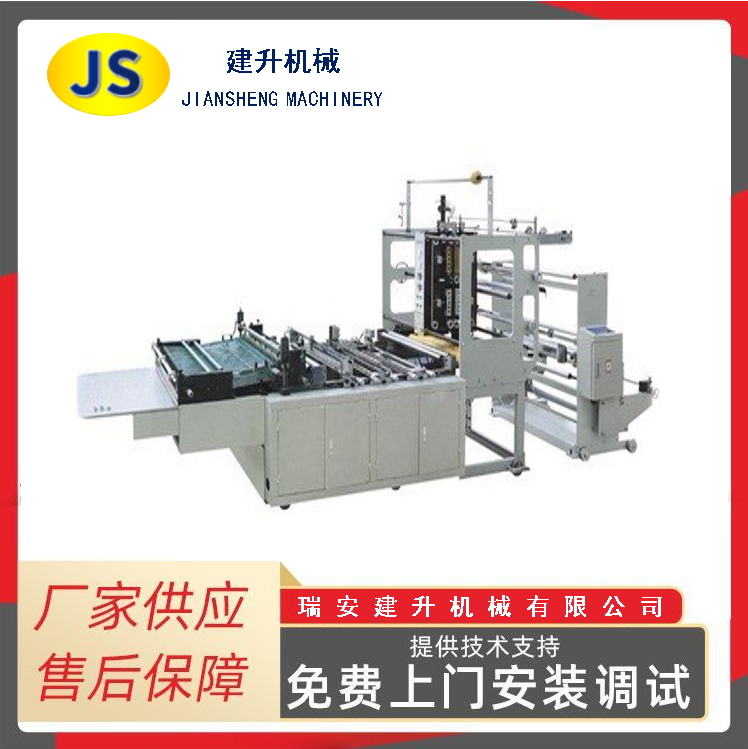

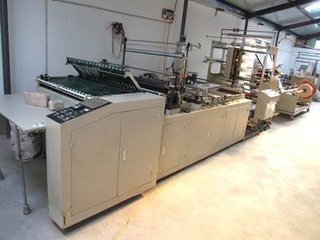

Chain bonded bag making machine
Chain bonded bag making machine Download Email Print this Page
Products Name :Chain bonded bag making machine
Specifications
Performance and characteristics

1、The machine adopts fully automatic servo motor computer input to control the length, easy operation,

firm sealing and beautiful quality.

2、Production process from the whole roll of raw materials, automatic sealing, cutting, through the strip,

laminating, ultrasonic flattening, printing electric eye, punching, hot cutting, automatic counting, the whole

 process is fully automatic operation.

3、The machine is equipped with no material automatic stopping equipment, printing electric eye failure

 automatic stopping equipment, temperature insufficient automatic stopping equipment, etc.


Main technical parameters:
Model :TPM-600、TPM-800
Material: LDPE-PP-PPE, LDPE-PP-PPE
Output: 50~150 (Cycle/min), 50~130 (Cycle/min)
Bag-making width: 100~500 mm, 120~600 mm
Bag-making length: 120~600 mm, 150~800 mm
