Automatic CD disc paper bag machine, automatic envelope window sticking machine
Automatic CD disc paper bag machine, automatic envelope window sticking machine Download Email Print this Page
Products Name :Automatic CD disc paper bag machine, automatic envelope window sticking machine
Specifications

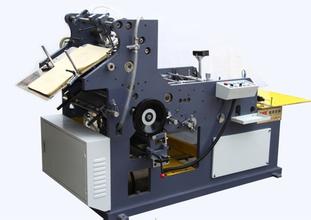

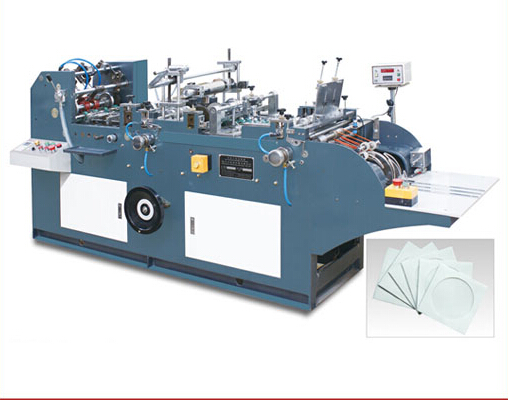

TM-390A automatic envelope CD window sticking machine is a new generation of window sticking equipment designed and manufactured by our company according to the market demand.

The machine can paste many kinds of products, it can paste the windows of 1-9 Chinese envelopes, 2-7 Western envelopes, 80X80, 130X130 CD-ROM bags, glasses bags and other non-standard products,

it can also be used for the paste of non-woven fabric and gold foil paper. The machine adopts air-absorbing bottom paper extraction and air-blowing paper dividing; adjustable chain pin pulling for precise

positioning; the roller half wheel automatically rolls the glue to ensure the glue amount is even; the film-pasting part adopts stepless variable speed to adjust the film length, and the roller automatically pastes

the film; the production process is simple and convenient, and the precision is stable and reliable. It is the most ideal equipment for pasting paper bag products.


Model: TM-390A
Applicable paper grams: 80-180g/m2
Working speed: 5000-18000pcs/h
Paper size: 90x100-370x480mm
Window size: 30x55-130x150mm
Motor power: 1.5kw
Air pump power: 3.0kw
Machine weight: 1500kg
Machine size (LxWxH): 2300x1050x1100mm
